LATHES

Parallel Lathe GEMA LZ 160

LATHES

Search

Make

Parallel Lathe GEMA LZ 160

Type

LZ 160

Description - Parallel Lathe GEMA LZ 160

Denomination
Parallel Lathe
Between points
1000 mm
Maxi Ø on bench
310 mm
Maxi Ø over saddle
180 mm
Maxi diameter in brocken bed
Ø 420 mm x Length 200 mm
Spindle diameter
Ø 44 mm
Spindle speed
from 48 to 1500 RPM
Turret
TRIPAN
Chuck
3-jaws chuck Ø 200 mm
Threadings
Metric + Whitworth
Tailstock
CM3
Feeds
auto longitudinal + transversal
Accessories
Supplied with 2 tool holders
Equipped with
Lubricant pump
Voltage
380 V
Dimensions (L x W x H)
2100 x 800 x 1300 mm
Weight
approx 1,3 T

Vidéo

Photos Gallery

Tour parallèle GEMA LZ 160
Tour parallèle GEMA LZ 160
Tour parallèle GEMA LZ 160
Tour parallèle GEMA LZ 160
Tour parallèle GEMA LZ 160 - Abaque
Tour parallèle GEMA LZ 160 - Abaque
Tour parallèle GEMA LZ 160 - Banc rompu
Tour parallèle GEMA LZ 160 - Banc
Tour parallèle GEMA LZ 160 - Chariot
Tour parallèle GEMA LZ 160 - Chariot
Tour parallèle GEMA LZ 160 - Passage de broche
Tour parallèle GEMA LZ 160 - Poupée
Tour parallèle GEMA LZ 160 - Poupée
Tour parallèle GEMA LZ 160 - Poupée

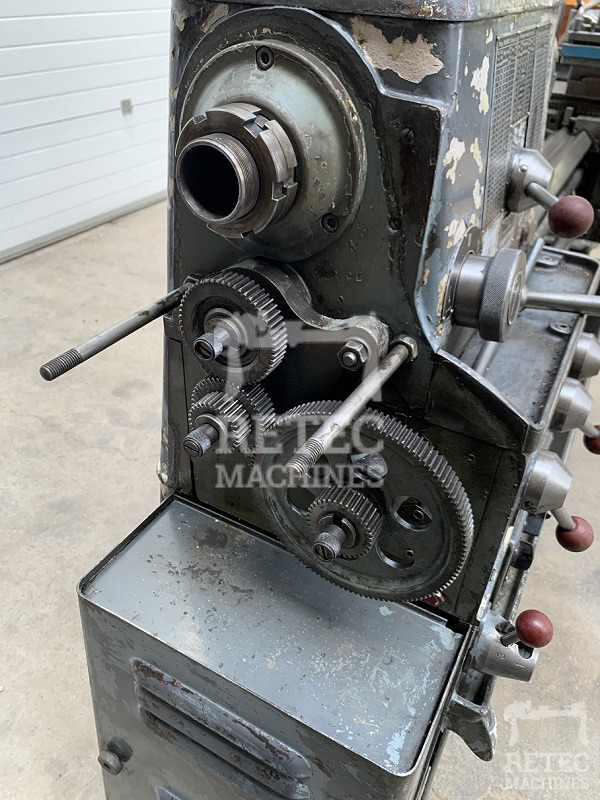

Tour parallèle GEMA LZ 160 - Roue dentée
