CNC vertical jig boring machine WMW MIKROMAT

JIG BORING MACHINES

Search

Make

CNC vertical jig boring machine WMW MIKROMAT

Type

BKoZ 900x1400/5NC

Description - CNC vertical jig boring machine WMW MIKROMAT

Denomination
CNC vertical jig boring machine
Travel X
1120 mm
Travel Y
710 mm
Spindle travel Z
315 mm
Travel W
630 mm
Numerical Command
CNC NUM 1060
Spindle
Ø 125 mm
Cone
SA40
Rotation
from 36 to 2240 RPM
Table size
1400 x 900 mm
Distance between colums
1080 mm
Maxi distance spindle nose/table
from 0 to 900 mm max
Maxi eligible load on table
1000 kg max
Various
Separate electrical panel
Various
Machine renewed in 2000 with CN NUM1060
Voltage
380 V
Dimensions (L x W x H)
4000 x 2460 x 3030 mm
Weight
approx. 9 T

Photos Gallery

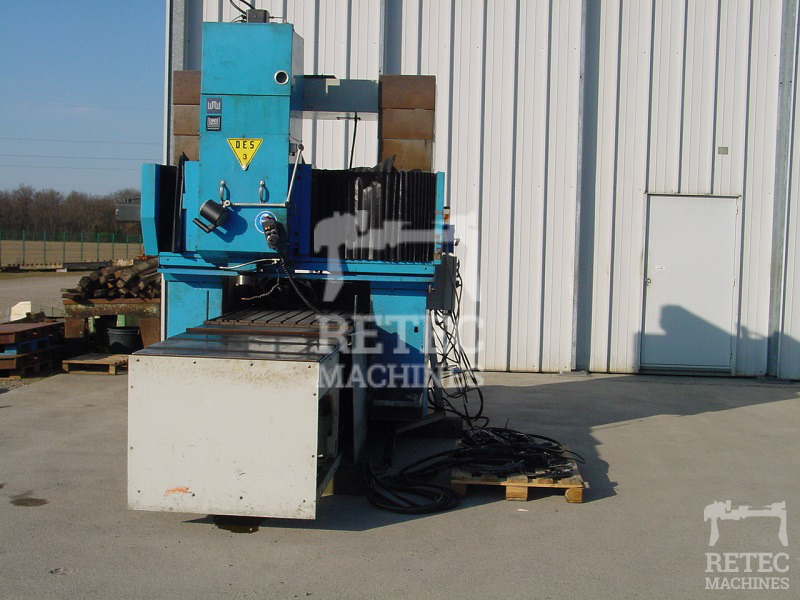

Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC

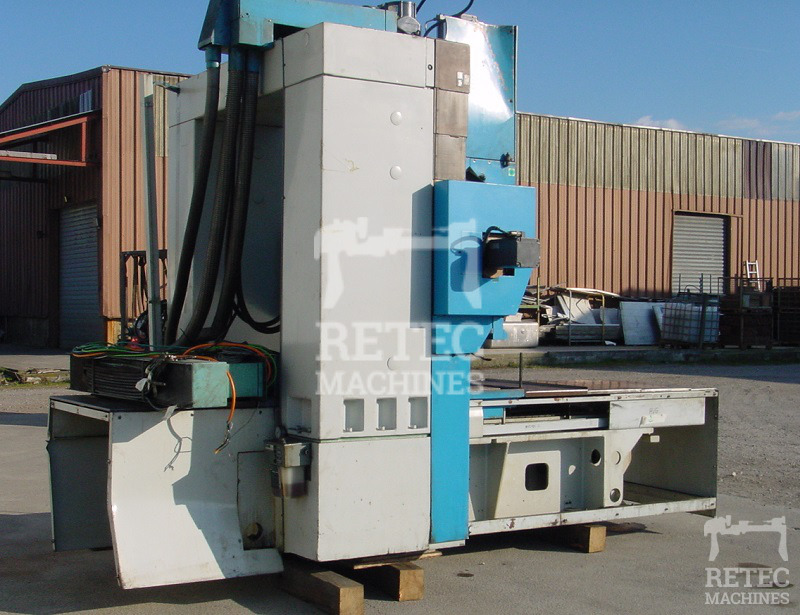

Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC - Arrière
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC - Armoire électrique
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC - Pupitre
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC - Pupitre
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC - Table
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC - NUM 1060
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC - Plaque
Pointeuse verticale CNC WMW MIKROMAT type BKoZ 900x1400/5NC - Connection électrique
